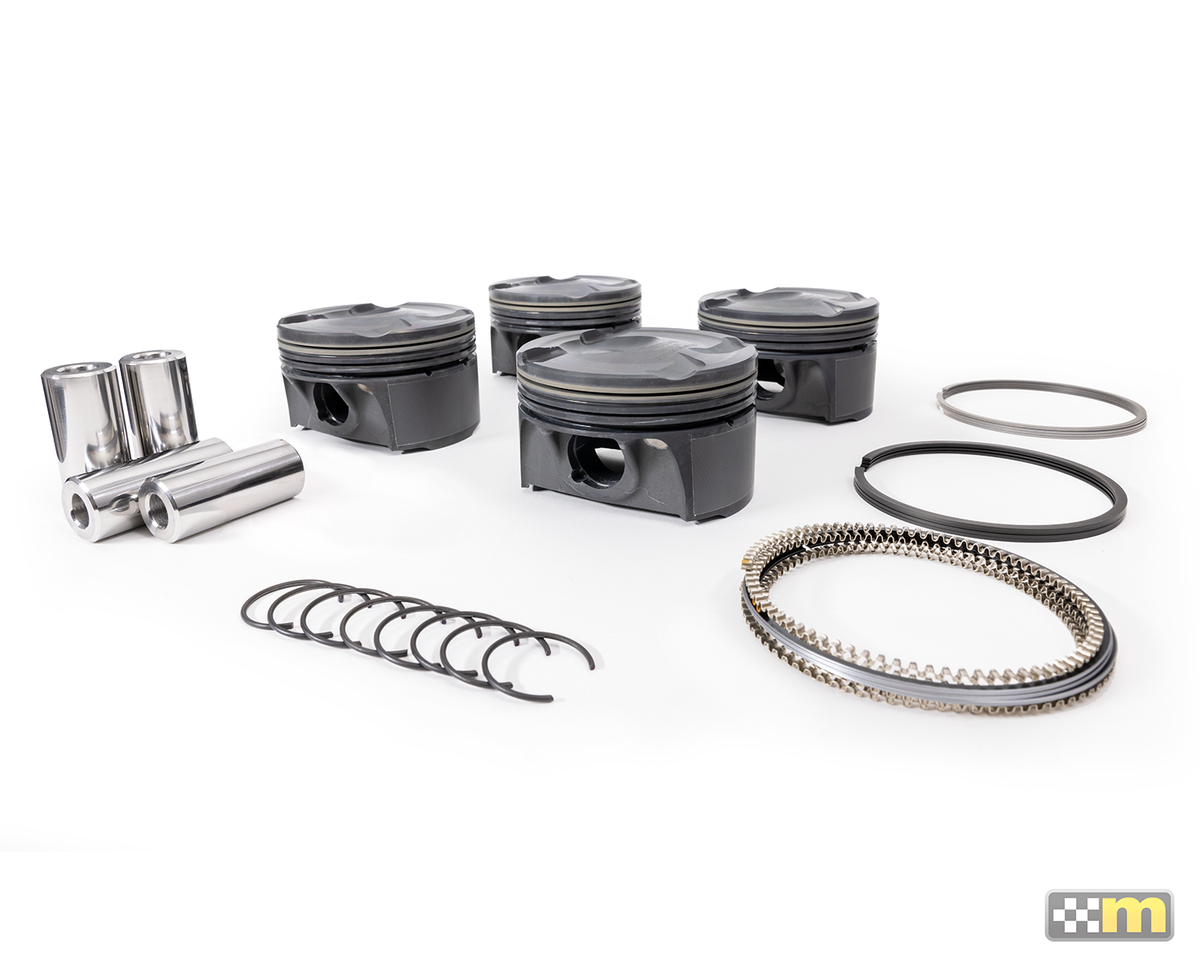

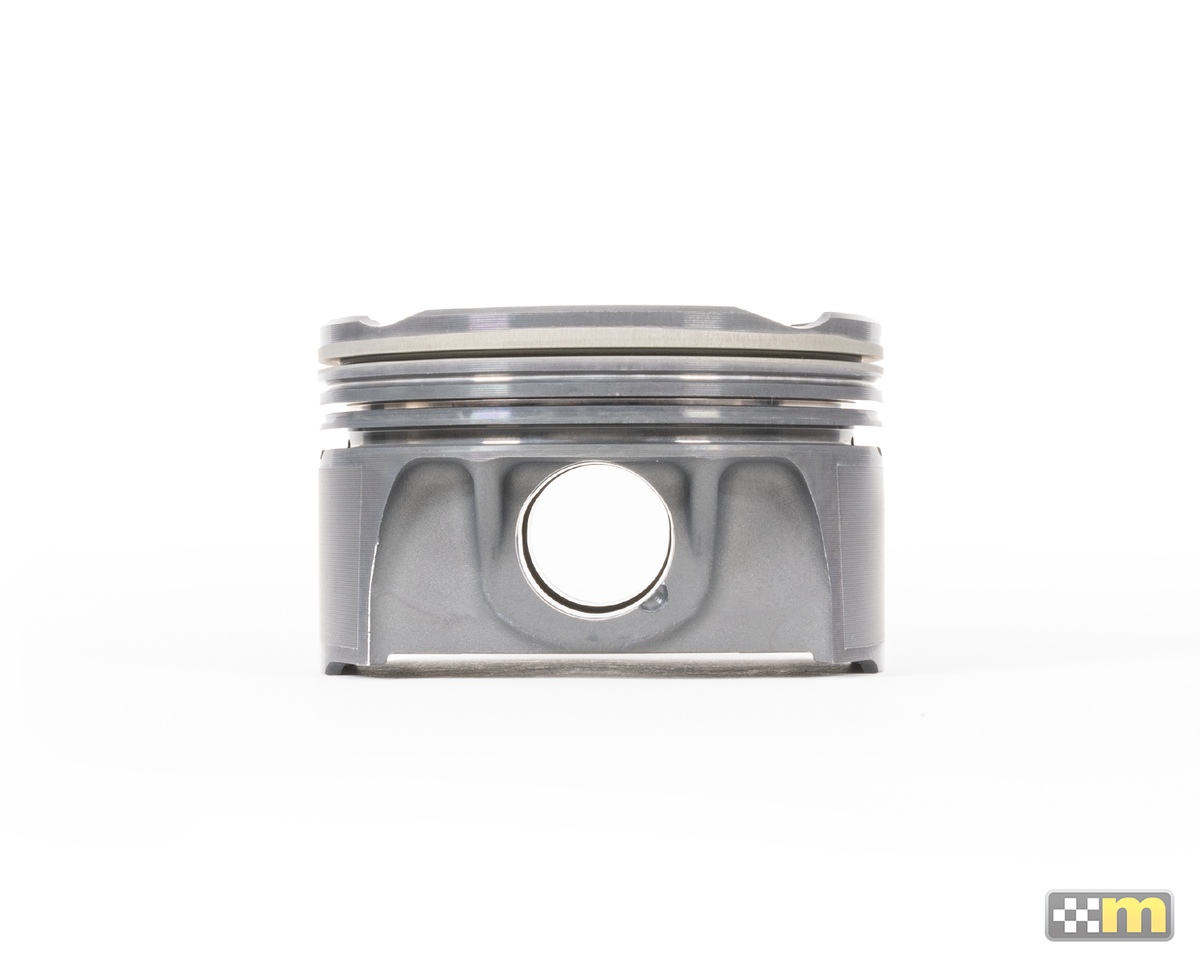

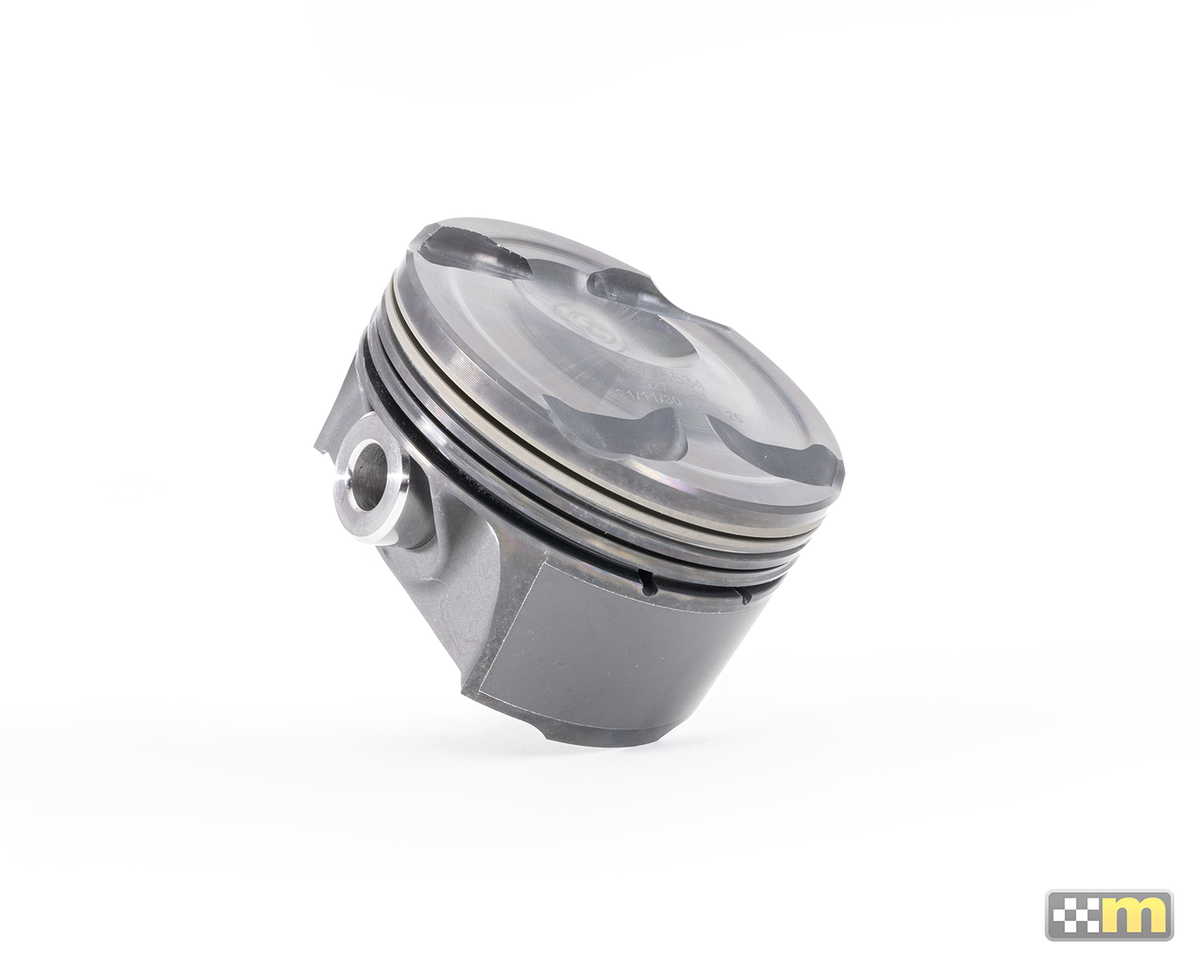

Forged Piston Set

The mountune Focus RS EcoBoost forged piston set has been designed in-house by mountune Racing as a high-performance upgrade for those wanting the ultimate piston for reliable, high-power builds.

Featuring an enlarged 23mm gudgeon pin to address a known area of weakness, the mountune piston also inherits many of the design features that have been developed and proven in our highest performing racing engines.

The pistons are manufactured exclusively for mountune in the US by MAHLE Motorsport utilising its 4032 grade alloy. This alloy was chosen by mountune's engine designers not only for its strength and durability, but also because of its high-silicone content, low-expansion properties. This means that a tighter piston to bore clearance can be used, which will result in a tighter seal and less noise when the engine is cold.

The forged pistons also feature a distinctive grey phosphate coating. This dry lubricant coating (not to be confused with a thermal film coating) provides a lubricant film in the pin bores and ring grooves until the oiling system of the engine reaches operating pressure; particularly useful during the initial start-up or break-in of engines to protect against galling and micro welding.

In addition to this, the piston skirts have also been treated with MAHLE's patented Grafal coating to reduce drag and friction in the cylinder bore, and also help to reduce some of the noise often associated with forged pistons.

Features:

  • Designed by mountune Racing

  • Manufactured for mountune by MAHLE Motorsport

  • 23mm Gudgeon pin

  • Forged from 4032 grade aluminium alloy for optimum strength.

  • CNC machined piston crown and pin bores.

  • MAHLE Grafal anti-friction coating on skirt to reduce drag, scuffing, cylinder bore wear and noise.

  • Phosphate-coated to reduce micro-welding and pin galling.

  • High strength lightweight steel gudgeon pins.

  • Race-proven round wire locks.

  • Low drag piston ring pack

Note: Sold as a set of four.
